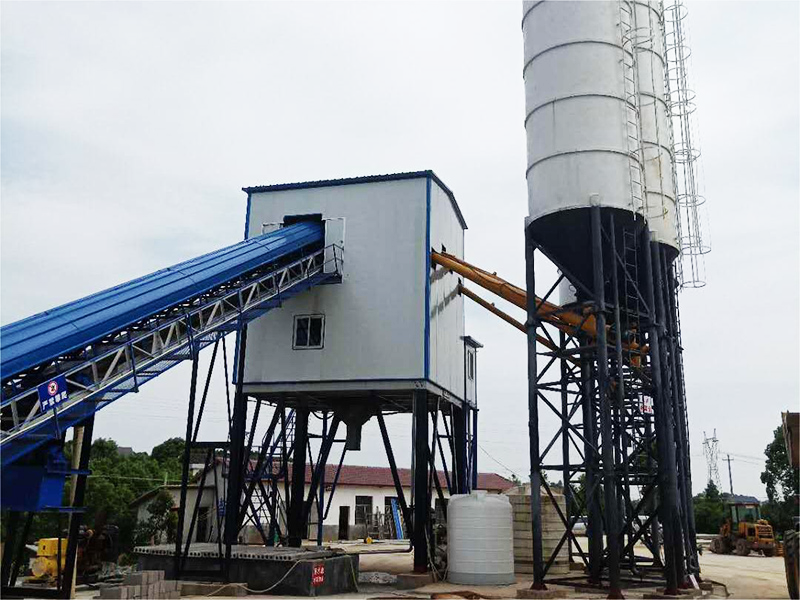

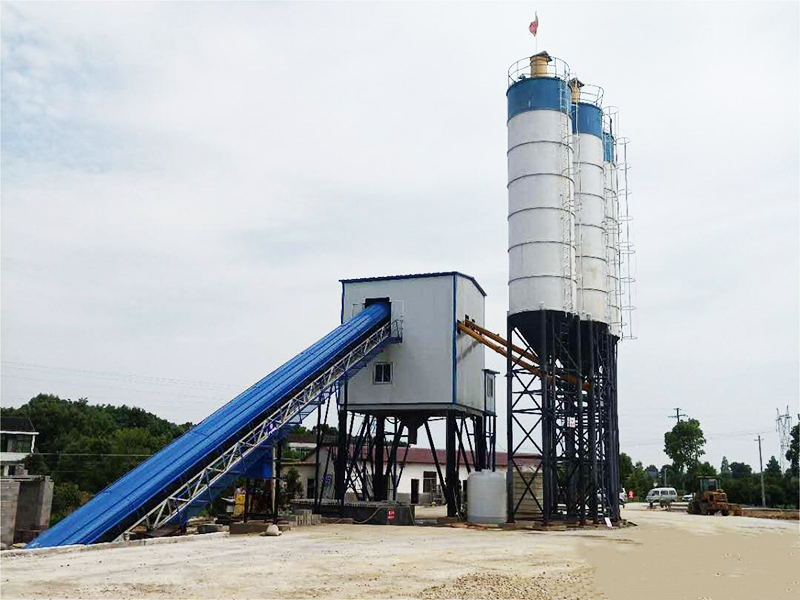

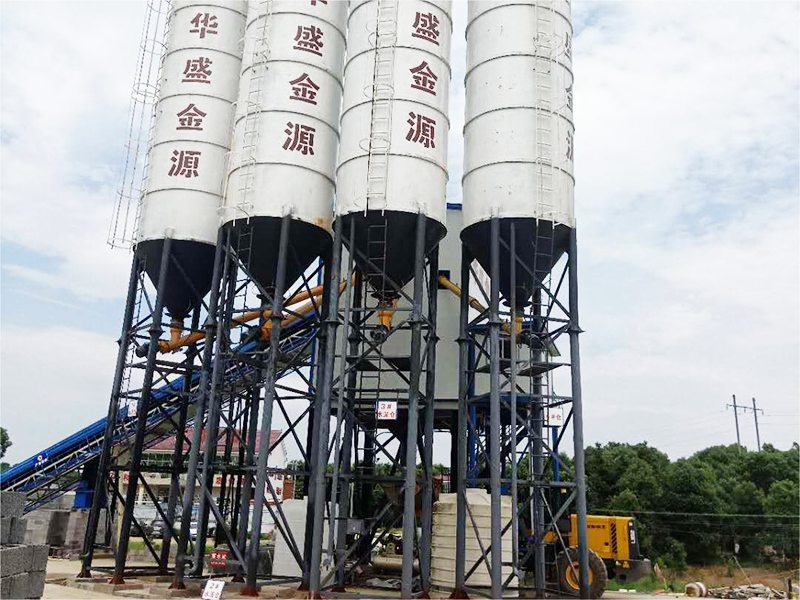

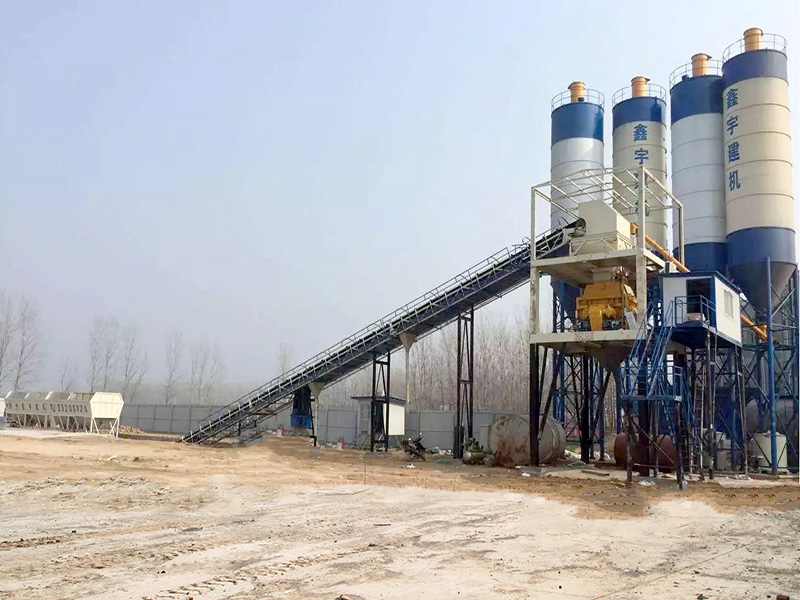

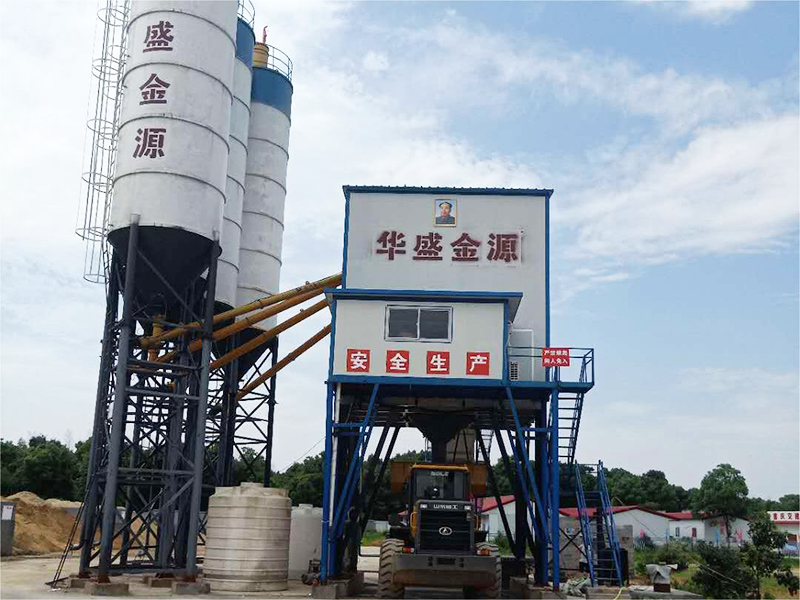

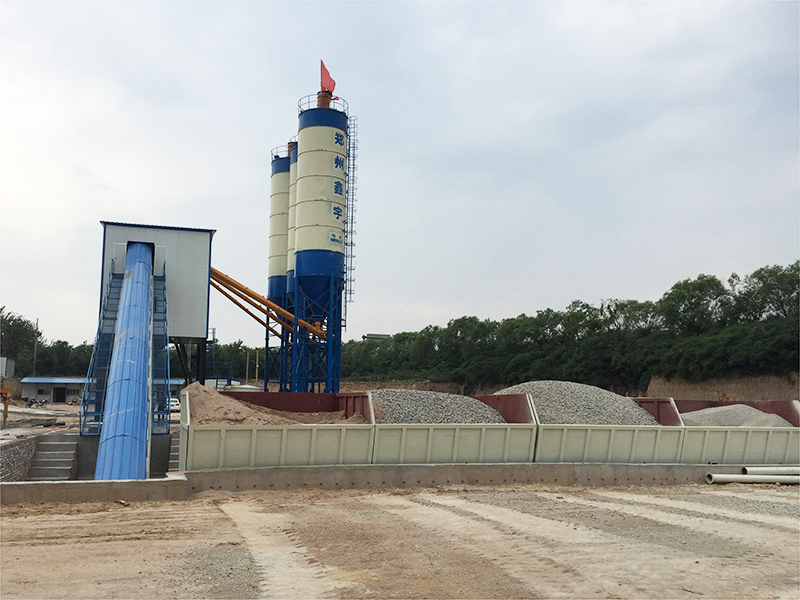

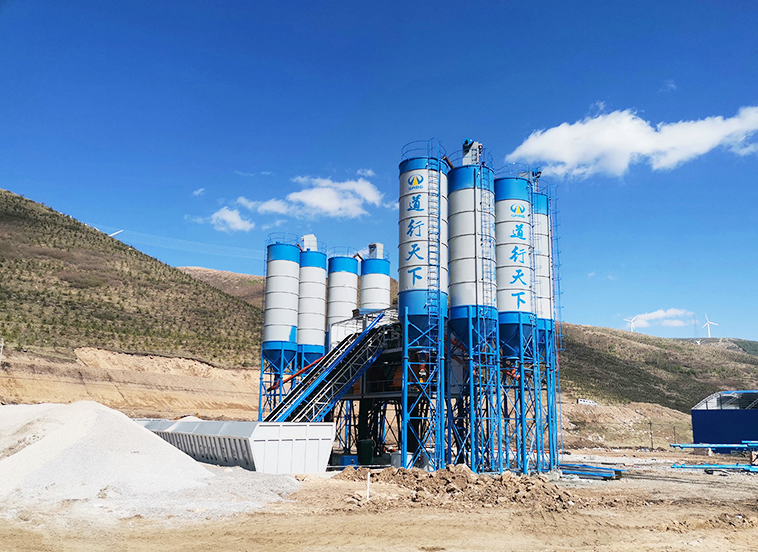

HZS120 Concrete Batching Plant
1.Description
HZS series belt conveyor type of Concrete Batching Plant is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard, as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years.
2.Features
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. With its modularization structure, it is easy to transport, install and debug more quickly.
3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable.
6. PC+PLC control system ensures the high reliability.
7. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
8. Human-based intelligent control facilitates the operation greatly.
9. Structural members are durable, and most electric elements adopt world famous brands.
.png)
|
Model |
HZS120 |
|
|
Mixing Plant |
Theoretical productivity |
120m3/h |
|
Discharging Height |
4.2m |
|
|
Installation Capability |
213kw |
|
|
Mixing System |
Mixer Model |
JS2000 |
|
Power |
74.9kw |
|
|
Charge Capacity |
3200L |
|
|
Discharge Capacity |
2000L |
|
|
Aggregate Batching System |
Batching machine Model |
PLD3200 |
|
Accuracy |
±2% |
|
|
Weighing System |
Cement Scales |
±1% |
|
Water Scales |
±1% |
|
|
Additive Scales |
±1% |
|
|
Measurement Precision |
±1% |
|
|
Model |
HZS120 |
|
|
Mixing Plant |
Theoretical productivity |
120m3/h |
|
Discharging Height |
4.2m |
|
|
Installation Capability |
213kw |
|
|
Mixing System |
Mixer Model |
JS2000 |
|
Power |
74.9kw |
|
|
Charge Capacity |
3200L |
|
|
Discharge Capacity |
2000L |
|
|
Aggregate Batching System |
Batching machine Model |
PLD3200 |
|
Accuracy |
±2% |
|
|
Weighing System |
Cement Scales |
±1% |
|
Water Scales |
±1% |
|
|
Additive Scales |
±1% |
|
|
Measurement Precision |
±1% |
|
