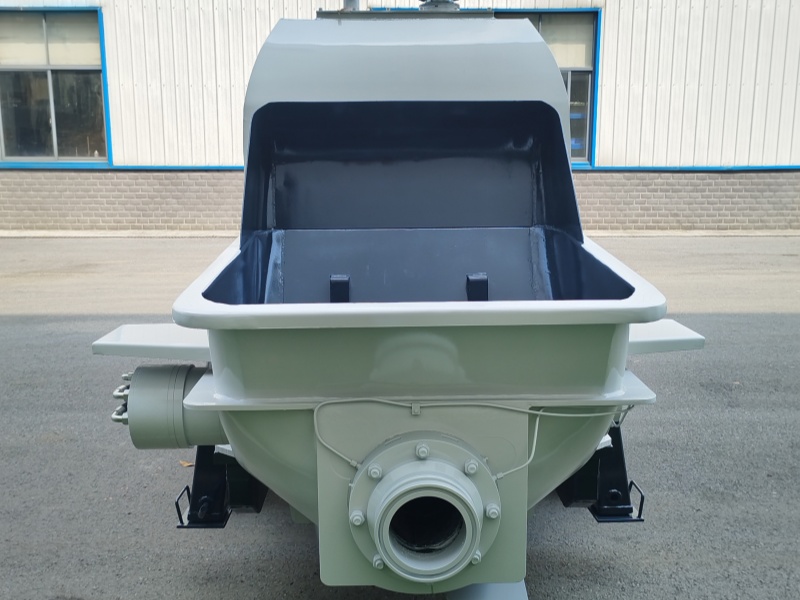

Concrete pump
HBT series concrete pumps are excellent modernized concrete machinery developed with aid of advanced technology. They are high tech concrete machine which are incorportated with international advanced technology and experiences in designing to replace the traditional way to lift the concrete by labor force.they adopt the diesel engine drive and motor drive S valve pump and gate valve pump with excellent techinical performance, high standard configuration and high reliability.
![](/d/pic/loaders/10m3-concrete-pump.jpg)
Features:
1. Agitation by the entire shaft axis design, embolization motor, strictly ensures the coaxial.
2. Double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
3. The distribution valve adopts the advanced S pipe valve system which consists of hard alloy eyeglass plates, cutting rings and rubber springs.
4. It has good sealing performance; the structure is simple and reliable, and convenient replacement of the wearing parts;
5. The pump is assembled through streamlined production with strictly control on the process to make sure its high quality.
![](/d/pic/loaders/5.jpg)
![](/d/pic/loaders/10m3-concrete-pump.jpg)
Features:
1. Agitation by the entire shaft axis design, embolization motor, strictly ensures the coaxial.
2. Double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
3. The distribution valve adopts the advanced S pipe valve system which consists of hard alloy eyeglass plates, cutting rings and rubber springs.
4. It has good sealing performance; the structure is simple and reliable, and convenient replacement of the wearing parts;
5. The pump is assembled through streamlined production with strictly control on the process to make sure its high quality.
![](/d/pic/loaders/5.jpg)
Unit
|
HBT30.6.35S
|
HBT40.8.45S
|
HBT50.10.55S
|
HBT60.13.90S
|
HBT80.16.110S
|
|
Type of Power Machine
|
/
|
Electric/Diesel engine
|
Electric/Diesel engine
|
Electric/Diesel engine
|
Electric/Diesel engine
|
Electric/Diesel engine
|
Pumping Volume(Max)
|
m³/h
|
30
|
35
|
52
|
66
|
75
|
Outlet Pressure
|
Mpa
|
6
|
8
|
10
|
13
|
13
|
Hydraulic System Type
|
/
|
Open
|
Open
|
Open
|
Open
|
Open
|
High/Low Switch
|
/
|
Rotary Valve
|
Rotary Valve
|
Rotary Valve
|
Rotary Valve
|
Rotary Valve
|
Rater Power
|
kw
|
35
|
45
|
55
|
90
|
90
|
Distribution Valve Type
|
/
|
S Valve
|
S Valve
|
S Valve
|
S Valve
|
S Valve
|
Concrete Cylinder Diameter*Stroke
|
mm
|
Φ125*600
|
Φ140*1000
|
Φ200*1000
|
Φ200*1650
|
Φ200*1800
|
Hopper Capacity*Feeding Height
|
L*mm
|
350*1000
|
350*1100
|
600*1400
|
600*1400
|
600*1400
|
Max.Aggregate Size
|
mm
|
Pebble:20;
Crushed Stone:20 |
Pebble:20;
Crushed Stone:20 |
Pebble:50;
Crushed Stone:40 |
Pebble:50;
Crushed Stone:40 |
Pebble:50;
Crushed Stone:40 |
Total Weight
|
kg
|
2300
|
2500
|
4500
|
6000
|
6100
|
Dimension(L*W*H)
|
mm
|
3800*1500*1600
|
4500*1500*1650
|
5100*1700*2000
|
6400*2100*2200
|
6400*2100*2200
|
Parameters
|
Unit
|
HBT30.6.35S
|
HBT40.8.45S
|
HBT50.10.55S
|
HBT60.13.90S
|
HBT80.16.110S
|
Type of Power Machine
|
/
|
Electric/Diesel engine
|
Electric/Diesel engine
|
Electric/Diesel engine
|
Electric/Diesel engine
|
Electric/Diesel engine
|
Pumping Volume(Max)
|
m³/h
|
30
|
35
|
52
|
66
|
75
|
Outlet Pressure
|
Mpa
|
6
|
8
|
10
|
13
|
13
|
Hydraulic System Type
|
/
|
Open
|
Open
|
Open
|
Open
|
Open
|
High/Low Switch
|
/
|
Rotary Valve
|
Rotary Valve
|
Rotary Valve
|
Rotary Valve
|
Rotary Valve
|
Rater Power
|
kw
|
35
|
45
|
55
|
90
|
90
|
Distribution Valve Type
|
/
|
S Valve
|
S Valve
|
S Valve
|
S Valve
|
S Valve
|
Concrete Cylinder Diameter*Stroke
|
mm
|
Φ125*600
|
Φ140*1000
|
Φ200*1000
|
Φ200*1650
|
Φ200*1800
|
Hopper Capacity*Feeding Height
|
L*mm
|
350*1000
|
350*1100
|
600*1400
|
600*1400
|
600*1400
|
Max.Aggregate Size
|
mm
|
Pebble:20;
Crushed Stone:20 |
Pebble:20;
Crushed Stone:20 |
Pebble:50;
Crushed Stone:40 |
Pebble:50;
Crushed Stone:40 |
Pebble:50;
Crushed Stone:40 |
Total Weight
|
kg
|
2300
|
2500
|
4500
|
6000
|
6100
|
Dimension(L*W*H)
|
mm
|
3800*1500*1600
|
4500*1500*1650
|
5100*1700*2000
|
6400*2100*2200
|
6400*2100*2200
|
