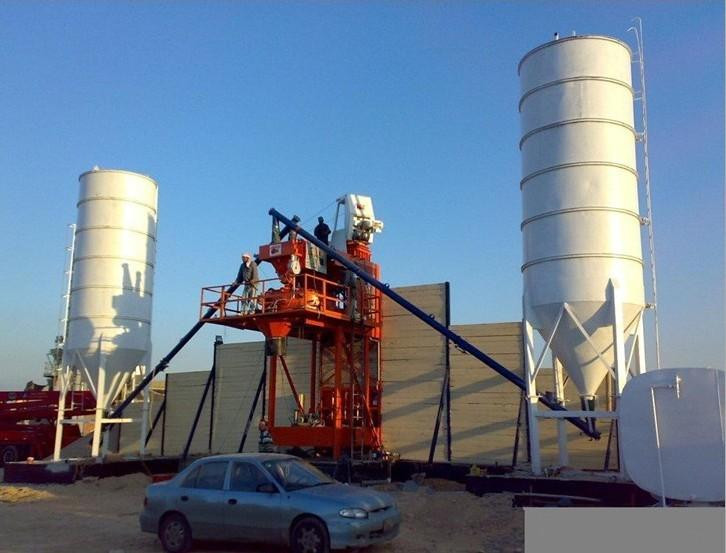

Mobile concrete batching plant is a station of material storage material, weighing, conveying, stirring, unloading and automatic control ; The process, operation and maintenance are exactly the same with fixed automatic batching plant; It is a combination of mobile and flexible, easy disassembling fast, simple storage management and other unique characteristics; Suitable for railways, Bridges, ports, water and electricity engineering construction .
The advantages are :
1. Quick disassembling, move convenient.
2. Other properties and operating mode, principle are same with fixed standard station.
Technical Parameters
|
Model |
YHZS25 |
YHZS40 |
YHZS50 |
YHZS75 |
|
|
Capacity |
25m3/h |
40 |
50 |
75 |
|
|
Mixer |
Type |
JS500 |
JS750 |
JS1000 |
JS1500 |
|
Power |
18.5kw |
30 kw |
37 kw |
2*30 kw |
|
|
Discharging capacity |
0.5 m³ |
0.75 |
1 |
1.5 |
|
|
Aggregate bin |
PLD1200 |
PLD1200 |
PLD1600 |
PLD2400 |
|
|
Weighing accuracy |
Aggregate |
±2% |
±2% |
±2% |
±2% |
|
Cement |
±1% |
±1% |
±1% |
±1% |
|
|
Total power |
56.5kw |
76 kw |
88 kw |
112 kw |
|
|
Gross weight |
15t |
17.5t |
19t |
21t |
|
|
Max. trailing Speed |
40 km/h |
40 km/h |
40 km/h |
40 km/h |
|
|
Voltage |
AC380V/50Hz |
AC380V/50Hz |
AC380V/50Hz |
AC380V/50Hz |
|
Features:
1. More secure: layout and installation of electrical wiring fully considers safety. Many places are equipped with safety switch.
2. More reliable: Professional embedded computer, which can be operated manually, automatically and automatic production which will meet a variety of needs. And the control system has the data backup function at sudden power outage which can effectively prevent data destruction.
3. More powerful: Automatic storage management can record operational process. And automatically maintenance warning system can remind operators.
|
Mobile concrete mixing station |
|||||
|
Order number |
Name of the Parameter |
YHZS25 |
YHZS40 |
YHZS50 |
YHZS75 |
|
1 |
Theoretical Productivity(m3/h) |
25 |
40 |
50 |
75 |
|
2 |
Model of Mixing Machine |
JS500 |
JS750 |
JS1000 |
JS1500 |
|
3 |
Mixer Power(kw) |
18.5 |
2×15 |
2×18.5 |
2×30 |
|
4 |
Max Aggregate Size(mm) |
≤80 |
≤80 |
≤80 |
≤80 |
|
5 |
Capacity of Aggregate Silo(m3) |
4×4 |
4×4 |
4×6 |
4×6 |
|
6 |
Aggregate Type |
4 |
4 |
4 |
4 |
|
7 |
Discharging Height(m) |
4 |
4 |
4 |
4 |
|
8 |
Installed Capacity(kw) |
56.5 |
76 |
88 |
112 |
|
9 |
Trailing Speed(km/h) |
≤40 |
≤40 |
≤40 |
≤40 |
|
10 |
Transport Status Dimensions(mm) |
13800×2100×4300 |
14824×2100×4300 |
14910×2100×4300 |
19270×2100×4300 |
|
11 |
Working Size(mm) |
13750×3300×7300 |
14800×3318×7488 |
14861×3360×7300 |
19600×3350×8000 |
