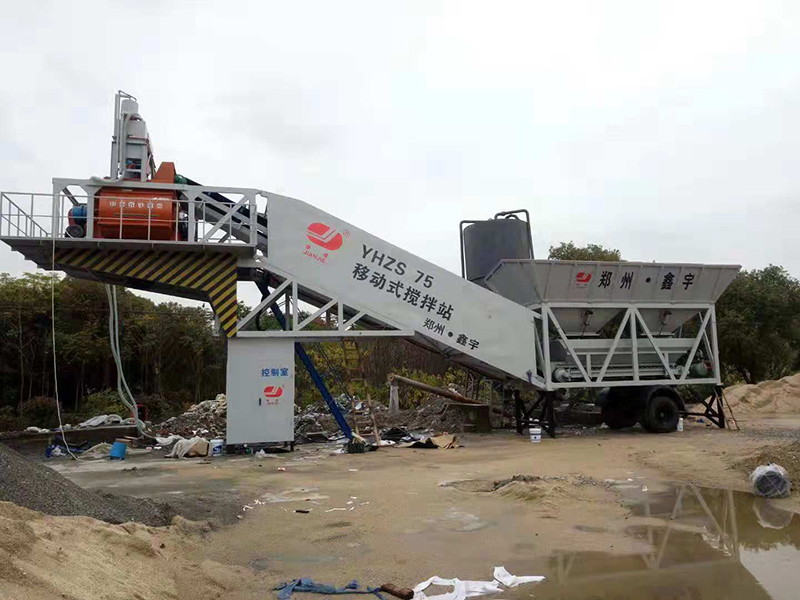

YHZS75 Mobile Concrete Batching Plant
Brief introduction
YHZS75 mobile concrete batching plant adopts the semi-pulling structure with running system and standard coupling pin included. It is a new type of movable cement mixing plant which can be draggedby a tractor to transferring work-site easily and quickly. Without foundation andcommissioning enables convenient movement and quick installation.
Features:
1. More secure: layout and installation of electrical wiring fully considers safety. Many places are equipped with safety switch.
2. More reliable: Professional embedded computer, which can be operated manually, automatically and automatic production which will meet
a variety of needs. And the control system has the data backup functionat sudden power outage which can effectively prevent data destruction.
3. More powerful: Automatic storage management can record operational process. And automatically maintenance warning system can remind operators.
Application
YHZS series mobile concrete batching plants are widely used in various kinds of large and medium scale prefabricated factory, construction site,road, bridge, airport, tunnel and many other projects. It is alsosuitable for water conservancy, the electric power, the railroad, the road, theharbor-wharf and so on.
Technical Parameters
|
Model |
YHZS25 |
YHZS40 |
YHZS50 |
YHZS75 |
|
|
Capacity |
25m3/h |
40 |
50 |
75 |
|
|
Mixer |
Type |
JS500 |
JS750 |
JS1000 |
JS1500 |
|
Power |
18.5kw |
30 kw |
37 kw |
2*30 kw |
|
|
Discharging capacity |
0.5 m³ |
0.75 |
1 |
1.5 |
|
|
Aggregate bin |
PLD1200 |
PLD1200 |
PLD1600 |
PLD2400 |
|
|
Weighing accuracy |
Aggregate |
±2% |
±2% |
±2% |
±2% |
|
Cement |
±1% |
±1% |
±1% |
±1% |
|
|
Total power |
56.5kw |
76 kw |
88 kw |
112 kw |
|
|
Gross weight |
15t |
17.5t |
19t |
21t |
|
|
Max. trailing Speed |
40 km/h |
40 km/h |
40 km/h |
40 km/h |
|
|
Voltage |
AC380V/50Hz |
AC380V/50Hz |
AC380V/50Hz |
AC380V/50Hz |
|
|
