Road Paver Leveling Machine

  • Name: Road Paver Leveling Machine
  • Paving thickness: 300mm
  • Pavement width: 0-6m
  • Exciting frequency: 32HZ
  • Exciting force: 5.5KN
  • Diameter of roller: 168mm
  • Walking speed: 8-10m/min
  • Power Motor: 4kw+4kw
  • Product Overview
  • Technical parameters
  • Inquiry

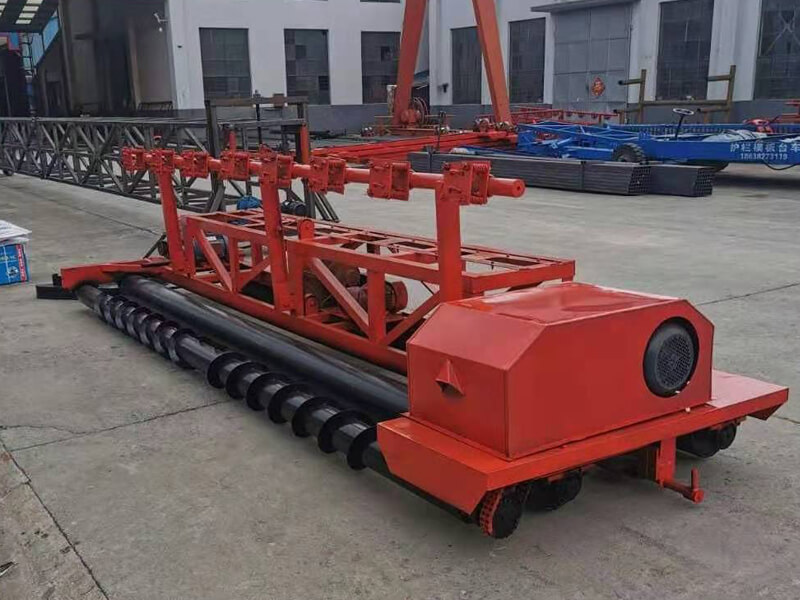

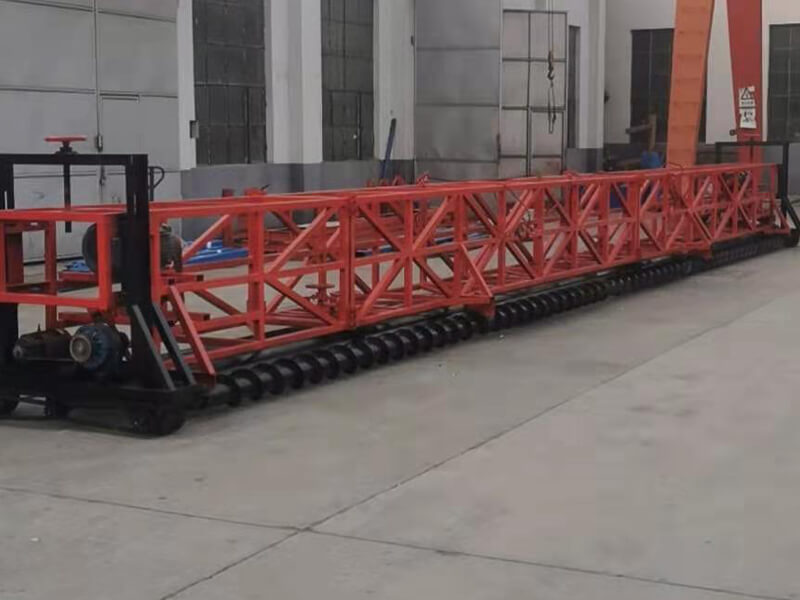

Road Paver Leveling Machine

Introduction:

Road Paver Leveling Machine is primarily used for laying various materials on the base and surface layers of highways. It consists of different systems such as the walking system, hydraulic system, and material distribution system. It is divided into gasoline, diesel, and electric road paver leveling machine.

Application:

The indoor floor:

1)Large industrial workshop,automated warehouse.

2)Electronic and electrical appliances, food materials, medicine and other clean workshop.

3)Large warehouse style supermarkets, logistics center, exhibition center and so on.



Outdoor floor:

1)Wharf, container yard, freight yard.

2)Airport runway, apron, parking lot.

3)Square, residential land, municipal road.

 Technical Parameter

Technical Parameter of Concrete Paver Leveling Machine

Model

XY-159

XY-168

XY-219A

XY-219B

Paving thickness

300mm

300mm

150-300mm

150-300mm

PaviFng width

0-6m

3-6m

3-8m

3-8m

Exciting frequency

32HZ

32HZ

32HZ

32HZ

Exciting force

5.5KN

5.5KN

5.5KN

5.5KN

Diameter of roller

159mm

168mm

219mm

219mm

Walking speed

10m/min

8-10m/min

9-12m/min

9-12m/min

Weight

1600kg

1000-1500kg

1200kg

1500KG

Power Motor

9.5kw-18.5kw

4kw +4kw

11KW

13KW






 Technical Parameter

Technical Parameter of Concrete Paver Leveling Machine

Model

XY-159

XY-168

XY-219A

XY-219B

Paving thickness

300mm

300mm

150-300mm

150-300mm

PaviFng width

0-6m

3-6m

3-8m

3-8m

Exciting frequency

32HZ

32HZ

32HZ

32HZ

Exciting force

5.5KN

5.5KN

5.5KN

5.5KN

Diameter of roller

159mm

168mm

219mm

219mm

Walking speed

10m/min

8-10m/min

9-12m/min

9-12m/min

Weight

1600kg

1000-1500kg

1200kg

1500KG

Power Motor

9.5kw-18.5kw

4kw +4kw

11KW

13KW
