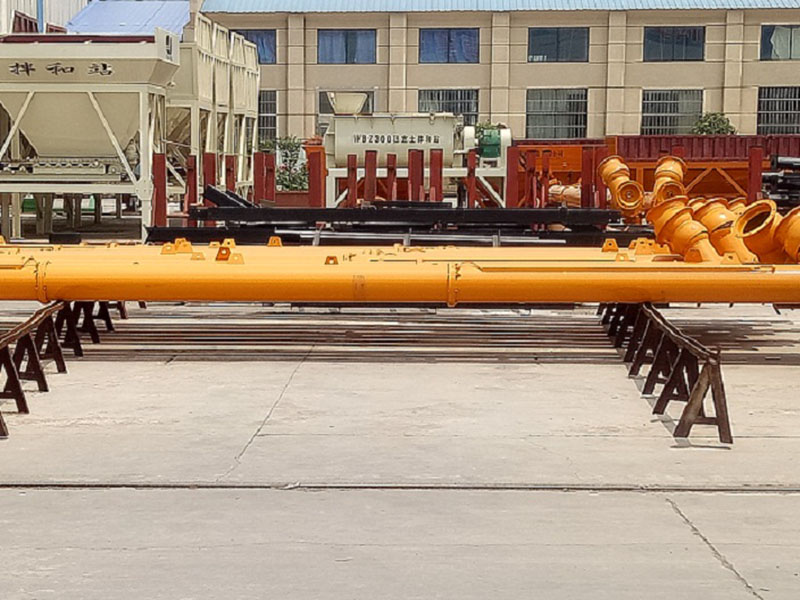

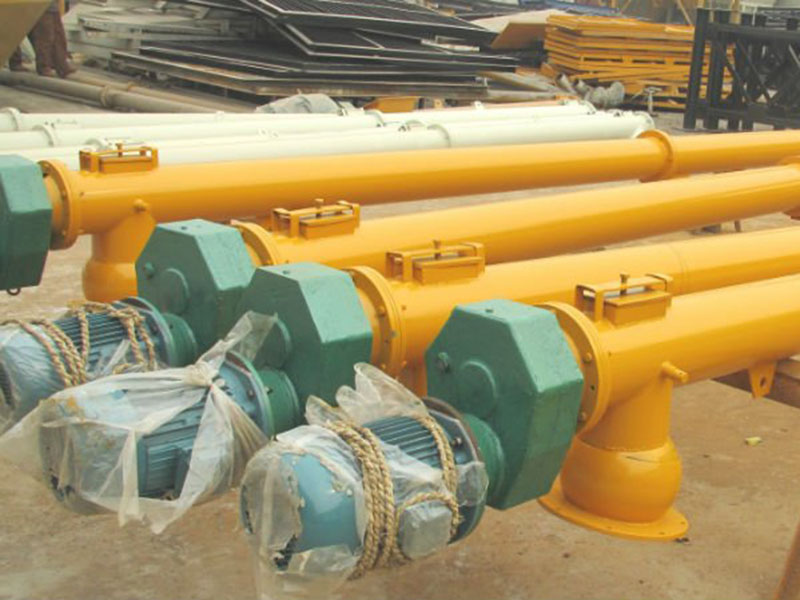

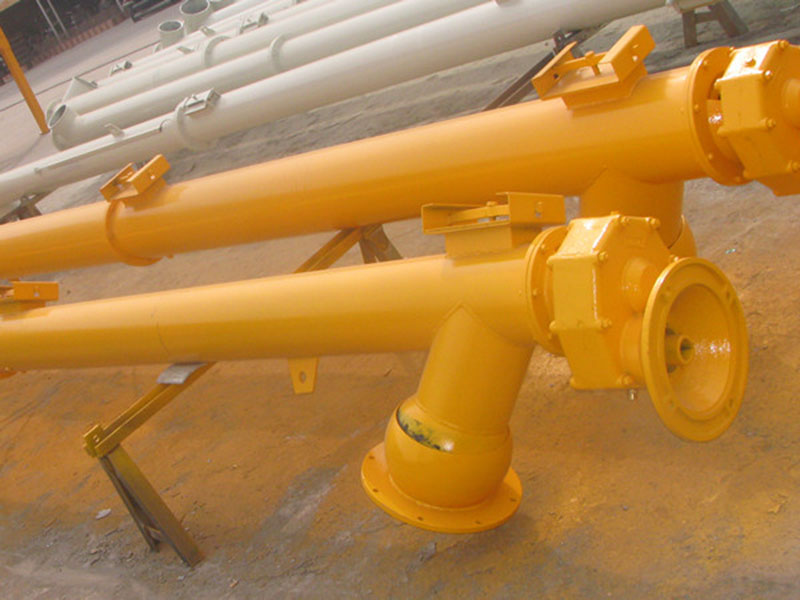

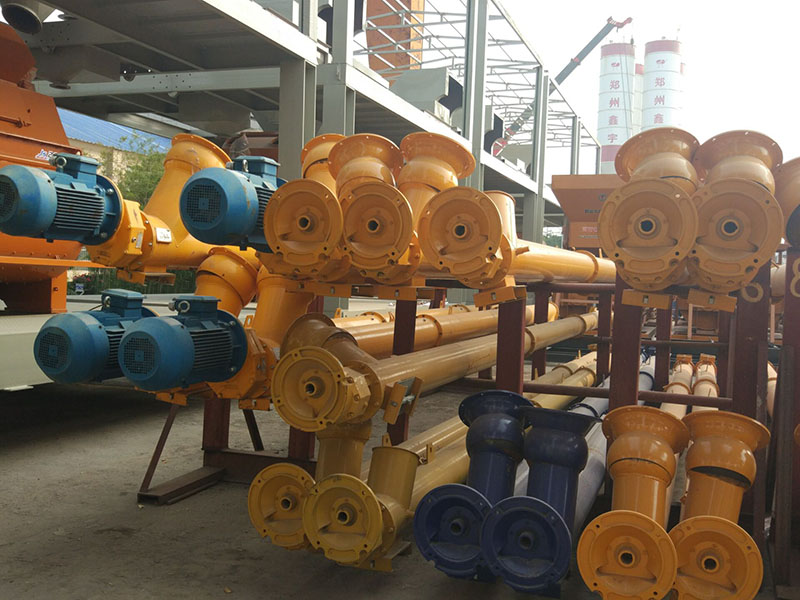

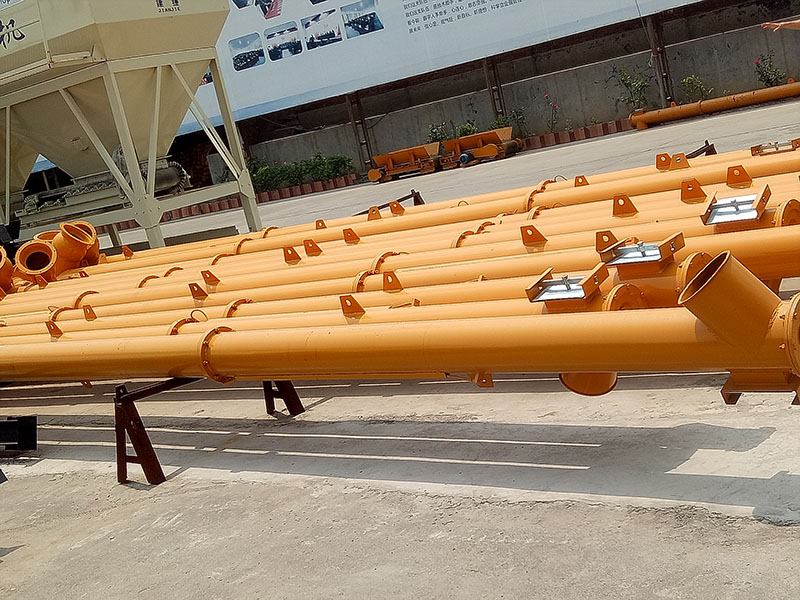

Screw Conveyor
Features
1.Using high-quality steel, steel is good overall,
2.Double pitch blades, reduce the degree of compression in the material transport ;
3.Made of high quality reducer, big torque, low noise characteristics;
4.The universal joint connection, the installation is more convenient;
5.Blade forming in one piece , no block materials. Screw conveyor technology parameters
(1).jpg)
Parameter
|
Model |
180-2.5 |
180-4.5 |
219-6 |
219-8(9) |
273-8(9) |
325-9(12.15) |
|
Metric Diameterof Screw(mm) |
160 |
160 |
185 |
185 |
237 |
305 |
|
Length ofscrew conveyor(m) |
2.5 |
4.5 |
6 |
8(9) |
8(9) |
9(12.15) |
|
Rotary speed of main axle |
112 |
112 |
100 |
100 |
90 |
80 |
|
External case diameter |
Ф180 |
Ф180 |
Ф219 |
Ф219 |
Ф273 |
Ф325 |
|
working angle |
≤20 |
≤20 |
≤45 |
≤45 |
≤45 |
≤45 |
|
Conveying capacity |
25 |
25 |
35 |
35 |
45 |
75 |
|
Model of motor |
Y100L2-4 |
Y112M-4 |
Y132S-4 |
Y132M-4 |
Y160L-4 |
Y180L-4 |
|
Power of motor |
3 |
4 |
5.5 |
7.5 |
15 |
18.5 |
|
